11: Linear Correlation & Regression

Background
Scatter Plot
Correlation
Regression
Importance of Visualization
Review Questions
References

Correlation and regression are complex and powerful statistical techniques that have wide application in data analysis. We will just address the tip of the iceberg for this topic, by basic linear correlation and regression techniques. This is used to analyze the relationship between two continuous variables. In general, the dependent (outcome) is referred to as Y and the independent (predictor) variable is called X.

To illustrate both methods, let us use the data set called BICYCLE.SAV. Data come from a study of bicycle helmet use (Y) and socioeconomic status (X). Y represents as the percentage of bicycle riders in the neighborhood wearing helmets. X represents the percentage of children receiving free or reduced-fee meals at school. Data are:

The basis of both correlation and regression lies in bivariate ("two variable") scatter plots. This type of graph shows (x_i, y_i) values for each observation on a grid. The scatter plot of the illustrative data set is shown below:

Notice that this graph reveals that high X values are associated with low values of Y. That is, as the number of children receiving reduced-fee meals at school increases, the bicycle helmet use rate decreases. Thereby, a negative correlation is said to exist.

Observations that do not fit the general data pattern are called outliers. Identifying and dealing with outliers is an important statistical undertaking. In some instances, outliers should be excluded before analyzing the data and in other instances they should remain present during analysis. However, they should never be entirely ignored. For insights into how to address outliers, please see www.tufts.edu/~gdallal/out.htm.

Pearson's correlation coefficient (r)

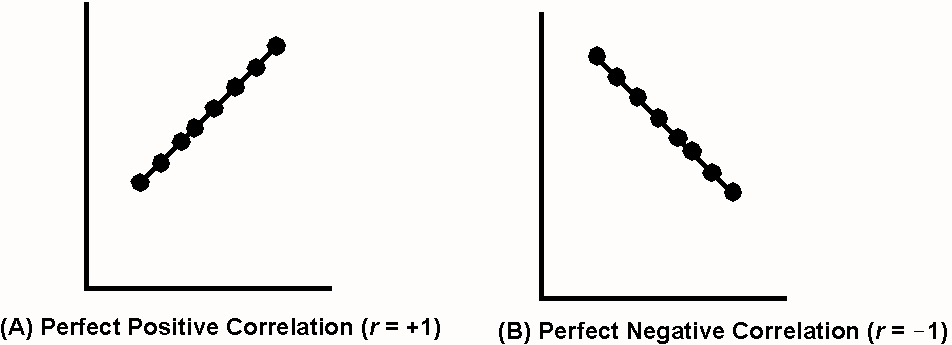

Pearson's correlation coefficient (r) is a statistic that quantifies the relationship between X and Y in unit-free terms. The closer the correlation coefficient is to +1 or -1, the better the two variables "keep in step." This can be visualized by the degree to which the scatter cloud adheres to an imaginary trend line through the data. When all points fall on a trend line with an upward slope, r = +1. When all points fall on a downward slope, r = -1.

Perfect positive and negative correlations, however, are seldom encountered, with most correlations coefficients falling short of these extremes. We may judge the strength of the correlation in qualitative terms: the closer r is to-1 or +1, the stronger is the correlation.

Although there are no firm cutoffs for strength, let us say that absolute correlations |r| greater than or equal to 0.7 are "strong." Absolute correlations less than 0.3 are "weak." Absolute correlations between 0.3 and 0.7 are moderate.

The sum of squares around the mean of the X variable (ss_xx) as:

ss_xx = S(x_i - x)�

This statistic measures the spread of independent variable X, and is the numerator of formula for the variance of X.

For the illustrative data set, x = 30.833 and ss_xx = 7855.67.

The sum of squares around the mean of the Y variable (ss_yy) as:

ss_yy = S(y_i - "y bar")�

For the illustrative data set, "y bar" = 30.883 and ss_yy = 3159.68.

Finally, let us define the sum of the crossproducts (ss_xy) as:

ss_xy= S(x_i - x)(y_i - "y bar")

This statistic is analogous to the above sum of squares, but instead quantifies the covariance between the independent variable X and dependent variable Y.

For the illustrative data set, ss_xy = -4231.1333.

Formula for r

r = (ss_xy) / sqrt(ss_xx * ss_yy)

For the illustrative data set, ss_xy = -4231.1333, ss_xx = 7855.67, ss_yy = 3159.68. Therefore, r = (-4231.1333) / sqrt(7855.67 * 3159.68) = -0.849. This suggests a strong negative correlation between X and Y.

Comment: Although there is no firm cutoff for what constitutes a strong correlation, let us say that |r| > 0.70 can be assumed to suggest a strong correlation.

SPSS: To compute correlation coefficients with SPSS, click on Statistics | Correlate | Bivariate, and then select the variables you want to analyze.

The primary goal of regression is to draw a line that predicts the average change in Y per unit X. If all data points were to fall exactly on a straight line, this would be a trivial matter. However, because most points will not fall exactly on the line, choosing a line for statistical inferences is a complicated endeavor.

To decide on the "best" line that describes the data, we model the expected value of Y for a stated value of X (E(Y|x)) so that:

E(Y|x) = a + bx

In recognizing the above equation as an equation for a line, the intercept (a) is where the line crosses the Y axis and the slope (b) represents the incline of the line (change in Y per unit X). To determine the intercept and slope of the regression line, we measure the distance of each data point from the line. This is called the residual, represented with the symbol e_i ("epsilon"). Each data point can now be represented with the equation:

Y_i = a + bx + e_i

Our strategy is to determine the regression line that minimizes the sum of the squared residuals (min Se�). This is the least squares criterion.

The parameter b is called the regression coefficient, or the slope of the regression line. The best estimate of this slope, denoted b, is given by the formula:

b = ss_xy / ss_xx

where ss_xy represents the sum of the crossproducts (see above) and ss_xx represents the sum of the squares for variable X.

For the illustrative data set, ss_xy = -4231.1333 and ss_xx = 7855.67. Therefore b = -4231.1333 / 7855.67 = -0.54. This negative slope indicates that each unit of X is associated with a 0.54 decrease in Y, on average.

SPSS: The regression coefficient and other regression statistics is computed by clicking Statistics | Regression | Linear. The regression coefficient slope is listed as the "Unstandardized Coefficients" for the X variable.

Let a represent the intercept parameter, and let a represent the estimate of this parameter. The estimate of the intercept is calculated by the equation:

a = "y bar" - bx

where "y bar" represents the average of all Y values, b represents the slope estimate, and x represents the average of all X values.

For the illustrative data set, "y bar" = 30.8833, b = -0.54, and x = 30.8333. Therefore, a = (30.8833) - (-0.54)(30.8333) = 47.49.

SPSS: The intercept is computed by the Statistics | Regression | Linear command and is listed as the "Unstandardized Coefficients" for the "(Constant)."

Knowing the intercept and slope allows us to predict the value of Y at a stated value of X. Let y^ ("y hat") represent this predicted value. From the regression equation we know:

y^ = a + bx

The regression model for the illustrative data set is: Predicted percent of bicycle riders wearing helmets(y^_i) = 47.49 + (-0.54)x_i. So, for a neighborhood in which half the children receive free- lunches (X = 50), the expected helmet use rate y^ = 47.49 + (-0.54)(50) = 20.5.

The standard error of the regression represents the standard deviation of Y after taking into account its dependency on X. It quantifies the accuracy with which the fitted regression line predicts the relationship between Y and X. Let us use the symbol s_Y�X to denote this statistic.

s_Y�X = sqrt[(ss_yy - b * ss_xy) / (n - 2)]

where ss_yy represents the sum of squares of Y, b represents the slope estimate, ss_xy represents the cross-product, and n represent the sample size. For the illustrative data set, s_Y�X = 9.38.

Let se represent the standard error of the slope estimate. It can be shown that:

se_b = s_Y�X / sqrt(ss_xx)

where s_Y�X represents the standard error of the regression and x represents the deviation of an X value from the mean of all X's (i.e., x = x_i - x).

For the illustrative data set, s_Y�X = 9.38 and ss_xx = 7855.67. Thereby, se_b = 9.38 / sqrt(7855.67) = 0.1058.

b � (t_n-2,.975)(se_b)

For the illustrative data set, we have -0.54 � (t_10,.975)(0.1058) = -0.54 � (2.23)(0.1058) = -0.54 � 0.24 = (-0.30, - 0.78). Notice how this confidence interval excludes a possible slope of 0 with 95% confidence.

Because the straight-line dependency in the sample may not necessarily hold up in the population, we have adopt different notation to represent the sample regression coefficient (b) and its regression coefficient parameter (b). We test the sample slope for significance by performing the test:

H₀: b = 0
H₁: b not = 0

t-stat = b / (se_b)

where b represents the estimate for the regression coefficient parameter and se represents the standard error of the regression coefficient. This statistic has n - 2 degrees of freedom. The current example shows t-statistic = -0.54 / .1058 = -5.10 with 12 - 2 = 10 degrees of freedom. This translates to p (two-sided) < .0005. Using APA notation, this is denoted t(10) = -5.09, p < .0005.

• Linearity between X and Y
• Independence of the observations
• Normality of residual error (discussed below)
• Equal variance of the residual error

The normality and equal variance assumptions can be understood by scrutinizing the residual error terms. Let us represent the residual error term associated with point (x_i, y_i) with the symbol e_i. Now each data point can be described by the equation y^_i = a + bx_i + e_i,, where y^_i represents the predicted value of Y given an intercept of a and slope of b. Under the null hypothesis, residual error terms are normally distributed with a mean of zero and constant variance. In symbols, e ~ N(0, sigma-squared). Figure 9 illustrates this assumption graphically.

Comment: SPSS has powerful software tools to help address regression assumptions, but these will not cover in this class. (A separate regression course would be necessary.)

In addition to the "LINE" assumptions needed for valid regression inference, correlational inferences assumes that the joint distribution of X and Y are normality (bivariate normal population). Figure 10 shows a bivariate normal population.

• Regression and correlation are robust techniques, so that moderate departures from the above assumptions can be withstood without a sizable loss in reliability.
• The above assumptions apply to parametric inferences about the slopes and correlation coefficients. No such assumptions (other than linearity) are necessary when simply describing relationships.
• Although regression and correlation techniques should be avoided when data are nonlinear, certain strategies may be employed to"straightened out" relationships and otherwise compensate for violations of assumptions (e.g., algebraic transformations of data).
• Inference may be restricted to particular ranges of X and Y. Mark Twain provides an amusing example of a nonsensical extrapolation:

Each of these data set has identical correlation and regression statistics (a = 3, b = 0.5, r = +0.82, p = .00217, etc.). However, scatter plots reveal clearly different relationships in each instance, with data set 1 showing a clear regression trend, data set 2 showing an upside-down U-shape, data set 3 showing a perfectly fitting algebraic line with one outlier, and data set 4 shows a bizarre vertical pattern with one outlier. (Try plotting each of these data sets!) Clearly, then, the regression equation y^ = 3 + 0.5x should not be used to represent these four very different relationships.

Y = dependent variable
X = independent variable
e_i = residual

ANS: The slope represents the angle of the line (i.e., the change in Y per unit X). The intercept represents the point at which the line crosses the Y-axis.

ANS: Statistical equations have an error term to capture the random scatter around the line. Algebraic equations have no error term, since each data point falls exactly on the line.

ANS: A zero slope indicates no correlation between X and Y.

ANS: The correlation coefficient measures the "fit" of data points around a trend line. The closer the correlation coefficient is to +1 or -1, the more closely data adhere to the line.

ANS: We are referring to the distribution of the "residuals" (e_i).

ANS: Estimator: b. Parameter: b

ANS: Estimator: r. Parameter: [Greek letter] "rho"

8. A t statistic can be used to test a slope. This statistic is associated with ___ degrees of freedom.

ANS: n - 2

9. Negative slopes suggest that as X increases, Y tends to _______________.

ANS: decrease


Kruskal, W. H.(1960) Some remarks on wild observations. Technometrics Available: www.tufts.edu/~gdallal/out.htm.
