Flight Control Design and Optimization Tools

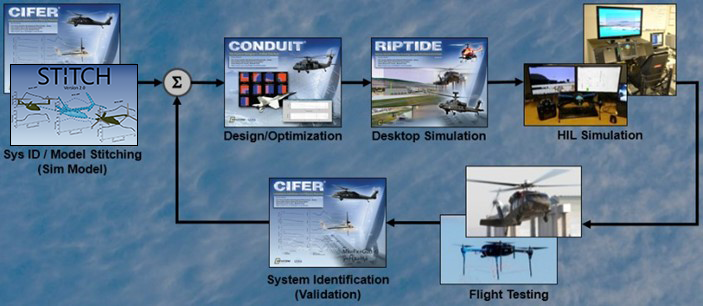

Figure: Flight Control Design and Optimization Tools

The design, simulation, integration, and flight testing of flight control systems for modern aircraft constitutes a series of challenging multidisciplinary tasks that factor significantly in the overall time and cost of aircraft development.

The U.S. Army Combat Capabilities Development Command (DEVCOM) Aviation & Missile Center (AvMC) in conjunction with San José State University Research Foundation (SJSURF), under a Cooperative Research and Development Agreement (CRADA) with DEVCOM AvMC, have jointly developed a modern integrated toolset that addresses such technical challenges:

CIFER® (Comprehensive Identification from FrEquency Responses), a system identification tool based on a comprehensive frequency-response approach that is uniquely suited to the difficult problems associated with flight-test data analysis.

CONDUIT® (CONtrol Designer's Unified InTerface), a state-of-the-art flight control design and optimization tool that allows the user to rapidly evaluate and optimize control systems against relevant performance specifications and design criteria.

RIPTIDE (Real-time Interactive Prototype Technology Integration Development Environment), a high fidelity desktop simulation tool which provides a platform for rapid piloted simulation evaluation of the control law design.

STITCH is a new software capability that allows a non-expert to create and verify a full-envelope stitched simulation model from individual point models and trim data.

Key Advantages of the Toolset:

  • Unique and integrated design environment that seamlessly brings together all relevant engineering disciplines under one common modeling platform.
  • Offers potential for significant reduction in time and cost of design, optimization, and simulation of modern flight control systems.

Fielding UAS and optionally-piloted systems bears an additional cost in developing algorithms to automate the flight control of these systems partially or entirely.

libOFN (Obstacle Field Navigation) is a software library that provides real-time sensor-based terrain avoidance and can be integrated into existing autonomous vehicle platforms.

libSLAD (Safe Landing Area Determination) is a software library that allows for rapid determination of safe landing areas based on terrain roughness, slope, proximity to obstacles, and other metrics.
